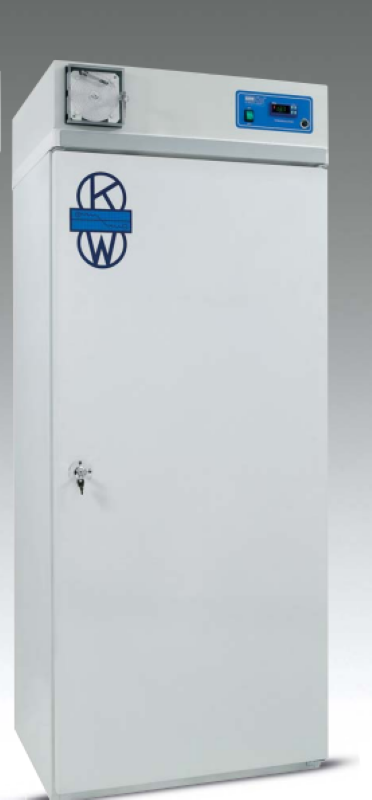

The external structure is made of a cabinet with rounded profi le in white enamelled steel sheets, and reversible door with magnetic gaskets and key lock. The door handle has an internal opening mechanism that allows manoeuvring with minimum eff ort on the part of the user. The cabinet comes with support feet on the front and small pivoting wheels on the back, in order to facilitate transportation and placement inside the laboratory .
Technical data: Capacity in litres: 520
External measurements (WXDXH): 75x72x191
Drawers (n): 7+7=14
Average power consumed in Kw: 0,10
Weight Kg. : 103
Set T between -18 °C and -30 °C
Power supply: Volt 220/50/1 T is guaranteed with room T up to +32 °C.
Equipment complies with CEI 66-5 – UNI EN 61010-1 standards
Visual alarms:
SENSOR ALARMS In case of temperature alarm breakdown or failure.
TEMPERATURE ALARM:
If, for any reason, the temperature starts increasing or decreasing until it falls outside the allowed range (configured with respect to the defined set point), the internal timer is activated (configurable alarm delay, 30 minutes by default but the value can be modified upon customer request); after this period the TEMPERATURE ALARM activates both visual and sound (BUZZER) alerts, and at the same time activates the remote alarm contact to send, if connected, a warning to the user regarding the failure. Standard equipment includes a connector for remote alarm towards the users
