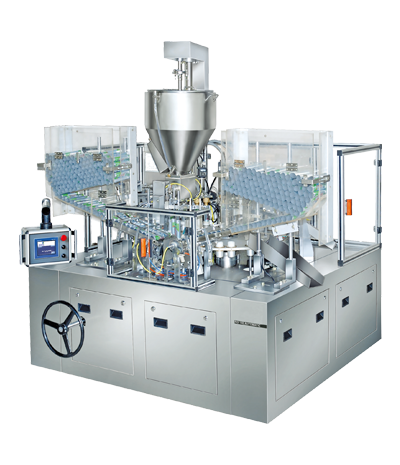

Tube Filling And Sealing Machine

    0.00 E£ 0.00 E£ 0.0 EGP

    0.00 E£

    This combination does not exist.

    Add to Cart

    Share On Social Media:

    Buy Now
    Request Quote
    Sold By
    CLUE
    Chat Now
    ( 0 / 5 )

    ماكينة تعبئة كريمات
    ماكينة تعبئة أنابيب بلاستيك وألومنيوم
    NPM- India
    Agent: Clue

    Suggested alternatives:

    NPM's tube filling and sealing machine is used across various industries from pharmaceuticals to cosmetics. The machine has a compact structure with minimal inefficiencies and is therefore extremely user-friendly. The tube filling and sealing machine is a highly functional machine and is used to fill various pastes, ointments and viscous fluids in the tubes

    OPERATIONS

    • Tube Cleaning
    • Tube Feeding
    • Tube Orientation
    • Filling
    • Heating
    • Sealing
    • Cutting
    • Tube Discharging

    OPTIONAL FEATURES

    • Chilling block for improved sealing in high speed machines
    • Mechanism to link with cartonator
    • Level sensor to maintain minimum product level in hopper
    • In-built tube cleaning operation by air and vacuum before filling
    • Jacketed hoper and stirrer

    Technical Specifications
    ModelNSTF − 40NATF − 40NATF − 80NSTF − 140
    OperationSemi AutomaticAutomaticAutomaticAutomatic
    Number of Heads1112
    Output (Tubes/Minute)35 − 4035 − 4070 − 75120 − 130
    Fill Accuracy±1%±1%±1%±1%
    Hopper Volume30 ltrs30 ltrs45 ltrs90 ltrs
    Power Consumption (Laminated/Plastic)6.5 KW7.5 KW9.5 KW16 KW
    Power Consumption (Aluminum)3.0 KW4.0 KW6.3 KW8.0 KW
    Weight (Net)750 KG750 KG1150 KG1650 KG
    Weight (Gross)1100 KG1100 KG1500 KG2000 KG



    Input Specifications
    SpecificationsRatings
    Tube TypesLaminated/Plastic/Aluminum
    Fill range3 gm to 200 gm
    Tube Diameter (Laminated/Plastic)16mm − 50mm
    Tube Diameter (Aluminum)12mm − 50mm
    Tube Height85mm − 200mm
    *Max tube diameter up to 35mm for NATF-140

    • Compact design & Simple OperationIn

    • compliance with cGMP & WHO

    • SS316 & Teflon Contact Parts

    • No tube − No Fill' Mechanism

    • Auto tube Orientation

    • PLC based operations

    • Safety interlocks

    • System to cut-off the rat-tail by air burst

    • Easy to clean and maintain

    • Shut-off nozzles to prevent dripping
