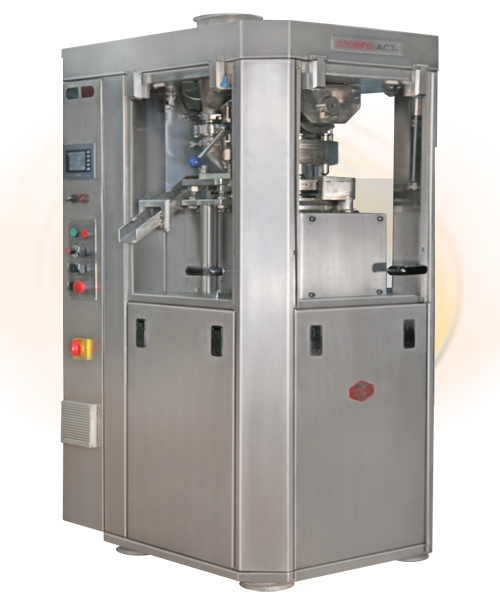

Single Rotary Tablet Press Act series 1

هذه التركيبة غير موجودة.

Add to Cart

Share On Social Media:

Buy Now

Request Quote

Sold By

CLUE

Chat Now

( 0 / 5 )

ماكينة كبس أقراص
FLUIDPACK- India
Agent: Clue

Suggested alternatives:

Pay by Easykash

With per compression of 10 tons.
With main compression of 10 tons.
9STN “D” Tooling / 11 STN “B” Tooling / 13 STN “BB” Tooling & 9D + 9B Tooling Combo

TYPE	ACT-I 9	ACT-I 11	ACT-I 13	ACT-I COMBO
NUMBER OF STATIONS	9	11	13	9D+9B
TYPE OF TOOLING (AS PER EU1)	D	B	BB	D+B
OUTPUT – TABLET / HOUR* (MIN. /MAX.)	5400/	6600/	7800/	5400/
(Single Layer)	18900	23100	47600	18900
OUTPUT – TABLET / HOUR* (MIN. /MAX.)	5400/	6600/	7800/	5400/
(Bi-Layer)	10800	13200	15600	10800
Turret RPM (Min - Max.) (Single Layer)	10 -35
Turret RPM (Min - Max.) (Bi-Layer)	10-20
MAX OPERATING PRESSURE MAIN (KN)	100	100	100	100
MAX OPERATING PRE –PRESSURE (KN)	100	100	100	100
MAX TABLET DIAMETER (MM)	25	16	11	11
MAX. TABLET THICKNESS (MM)	8.5
DEPTH OF FILL (MM)(WITH THREE DIFFERENT LOWER TRACK)	3-10
	8.5-14
	12.5-20
UPPER PUNCH ENTRY MAIN (MM)	1 To 6
UPPER PUNCH ENTRY PRE- COMPRESSION (MM)	1 To 6
POWER – TOTAL (KW/HP)	2.325/3.1
MAIN ELE. MOTOR (KW/ HP)	2.25/3, x 1440 RPM
MAIN PRESS ROLL ELE. MOTOR (KW/ HP)	0.025/0.0335 x 1440 RPM
PRE.PRESS ROLL ELE MOTOR(KW/HP)	0.025/0.0335 x 1440 RPM
WEIGHT ADJ. ELE MOTOR (KW/HP)	0.025/0.0335 x 1440 RPM
HOPPER CAPACITY	4 Litres
OVERALL DIMENSIONS (WITH CLOSE GUARD) (CM)	86Lx77Wx159H
OVERALL DIMENSIONS (WITH OPEN GUARD) (CM)	169.3Lx138.3Wx200.7H
Case dimensions (cm)	110x100x175 H
NET WEIGHT (Kg.)	Approx. 850
GROSS WEIGHT (Kg.)	Approx. 1050
UTILITES	1) Suction Air :- 150 CFM
	2) Power Supply :- 415 V,3 Phase, 50 Hz
